Portable pneumatic engraving machine chassis number marking machine XY/C1-12040

Dot peen marking machines are mainly used to mark metals and non-metals (relatively hard), such as various chassis numbers (VIN), engine numbers, mechanical parts, machine tools, hardware products, metal pipes, gears, pump bodies, valves, fasteners, steel, instruments, electromechanical equipment, etc. Marking capabilities: numbers, letters, graphics, dot matrix and custom fonts.

Model:
XY/C1-12040
Brand:
Xanyi Mak

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Overview:

Xanyi Mak is world leading dot peen marking machine manufacturers.

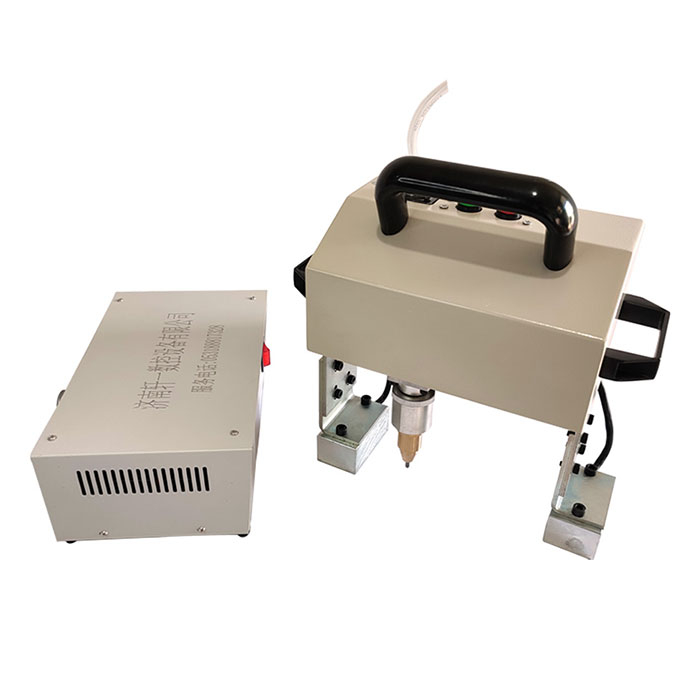

Our Pneumatic dot peen marking machine (Model: XY/C112040) is suitable for marking on objects that have large size and is not easy to move, such as large size valves and frame, motorcycle chassis and auto-car engines.

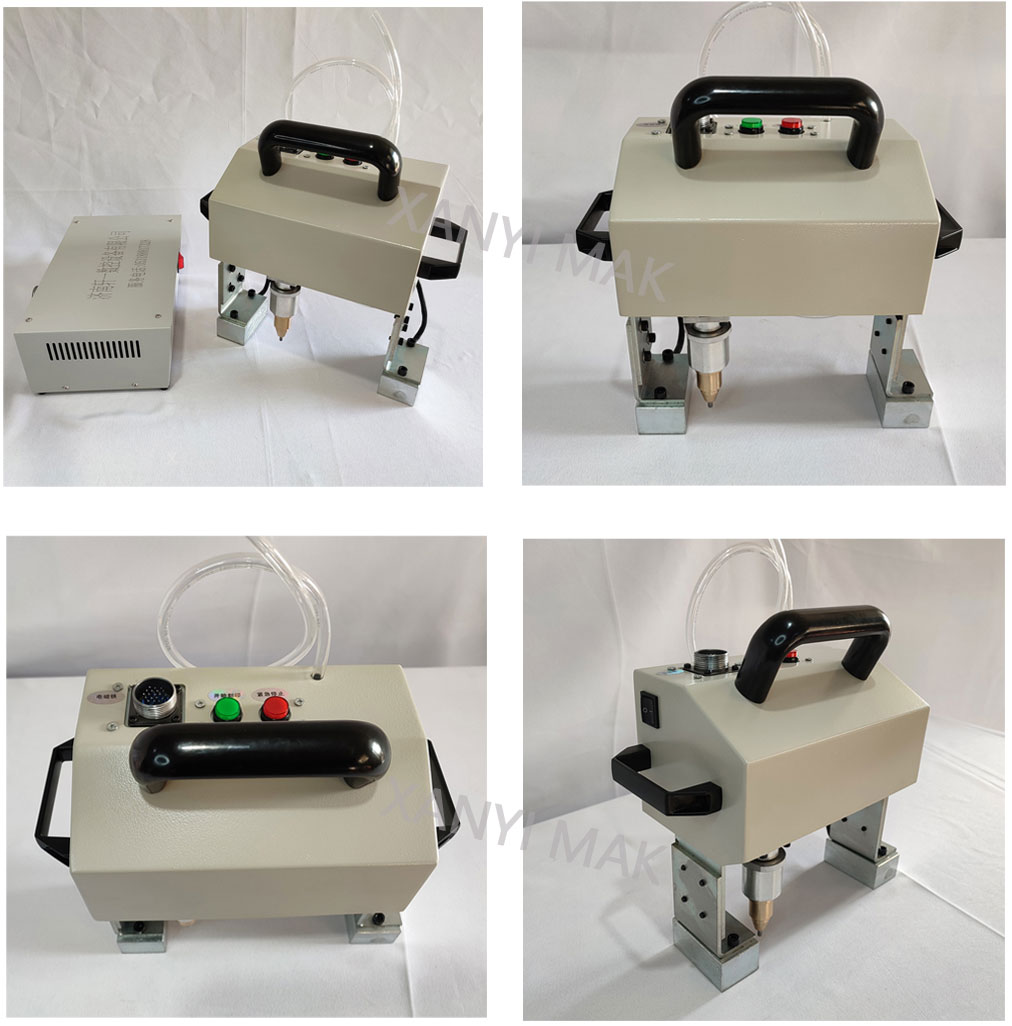

This portable dot peen marking machine is handheld type, which can be used on the surface of large metal body which is hard to move.

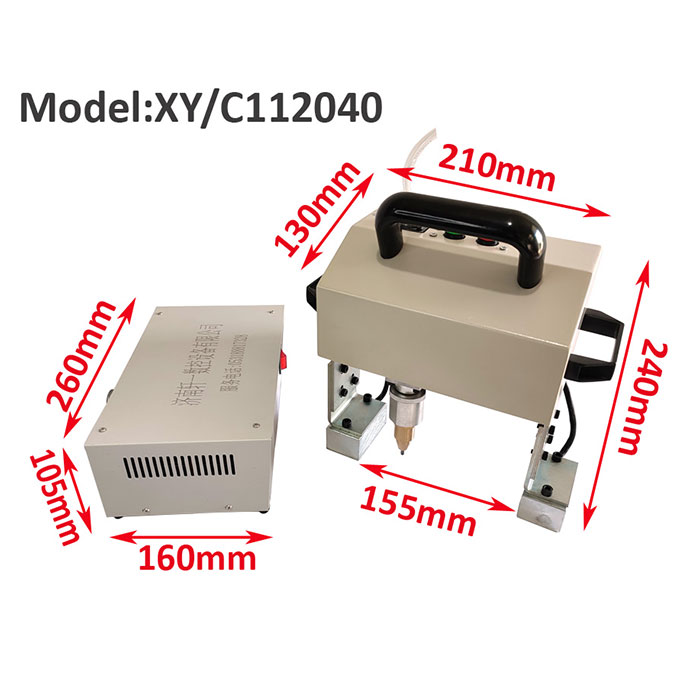

XY-C112040

Main technical performance:

Product Name	Dot Peen Marking Machine
Model No.	XY/C1-12040
Standard Working Area	120mm×40mm
Marking Depth	0.01~1.5mm(Depending on the material)
Marking Speed	≤50mm/second (for characters height of 3mm or 3-4 numbers /second)
Printed Content	Letters,numbers,characters,logos,Chinese characters,serial numbers
Repeated Accuracy	0.01 mm
Pin Hardness	HRC 92
Power Supply	AC100-240V 50HZ/60HZ
User provided	Computer,air compressor
Air pressure	0.2-0.6Mpa
Machine Power:	≤250 W
Working Environment:	-5~40 C
Machine Weight:	Marking head:8.5kg,Overall weight:11.7kg

Equipment using conditions:

1. Voltage: 110V/220V ± 10%, 50/60HZ;

2. Compressed Air source: 0.2-0.6Mpa, dry and pure;

3. Ambient temperature: 0-40 °C;

4. Overall power: ≤400W; the power of the marking machine is about 150w, plus the controller, the overall power of the controller will not exceed 400W.

Marking Samles:

XY C112040
