Product Overview:

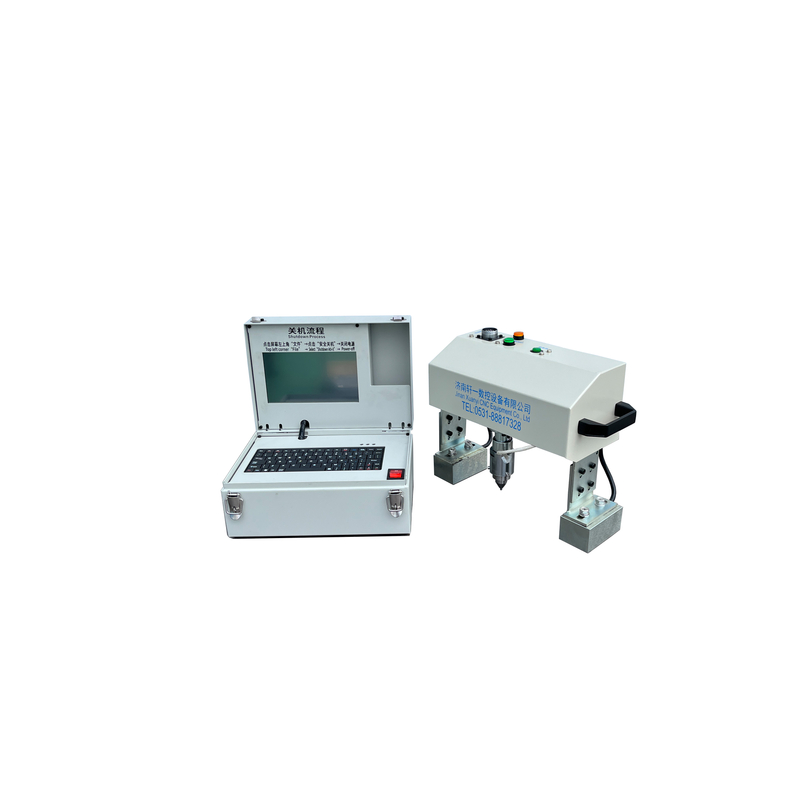

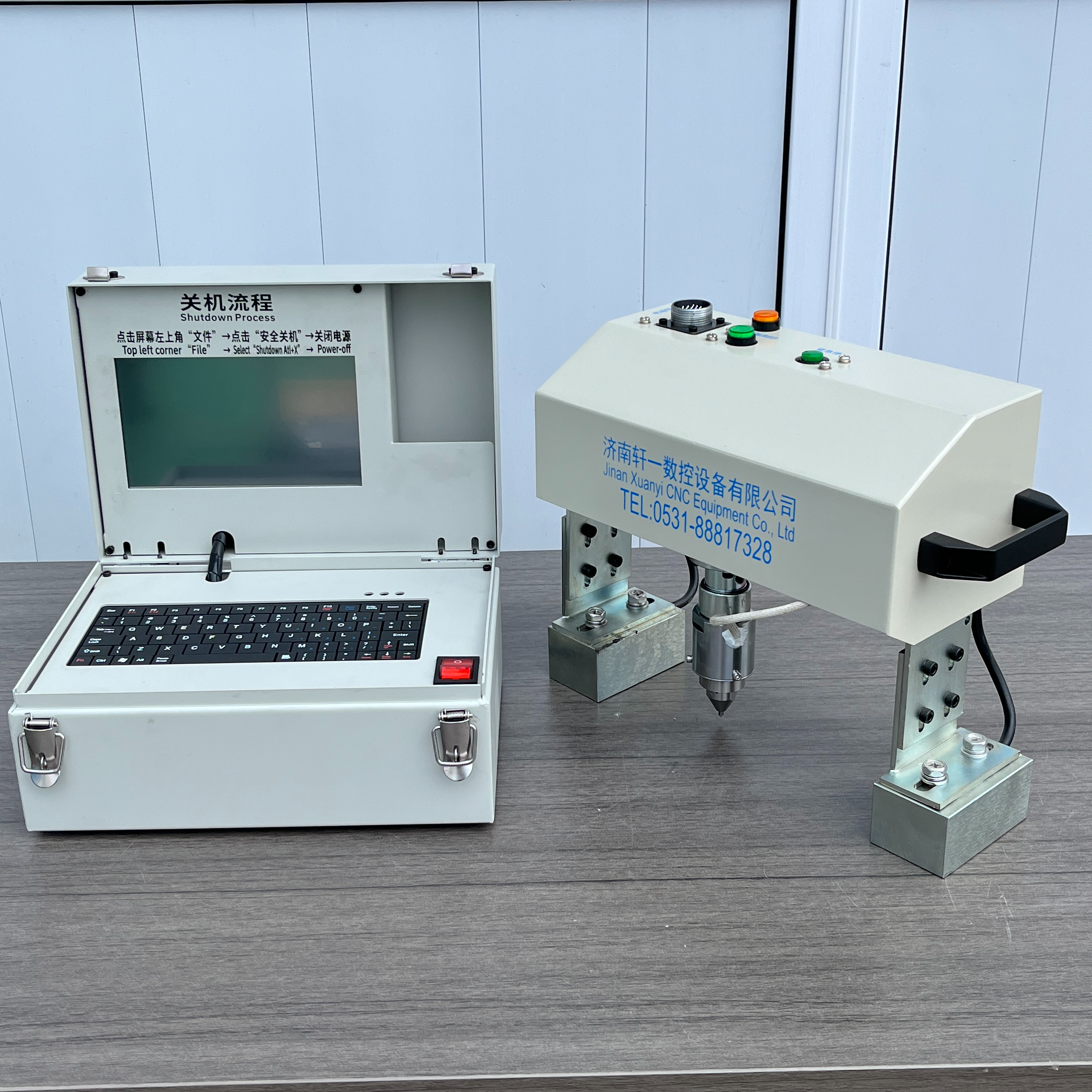

Xanyi Mak -Easy-to-move Hand Held Portable Dot Pen Marking Machine For Pin Marking Metal Non-metal (Model: XY/C3-15040-D) is suitable for marking on objects that have large size and is not easy to move, such as large size valves and frame, motorcycle chassis and auto-car engines.This portable dot peen marking machine is handheld type, which can be used on the surface of large metal body which is hard to move.
Main technical performance:
Product Name | Dot Peen Marking Machine |
Model No. | XY/C3-15040-D |
Standard Working Area | 150mm×40mm |
Marking Depth | 0.01~1.5mm(Depending on the material) |
Marking Speed | ≤50mm/second (for characters height of 3mm or 3-4 numbers /second) |
Printed Content | Letters,numbers,characters,logos,Chinese characters,serial numbers |
Repeated Accuracy | 0.01 mm |
Pin Hardness | HRC 92 |
Power Supply | AC100-240V 50HZ/60HZ |
Machine Power: | ≤250 W |
Working Environment: | -5~40 C |

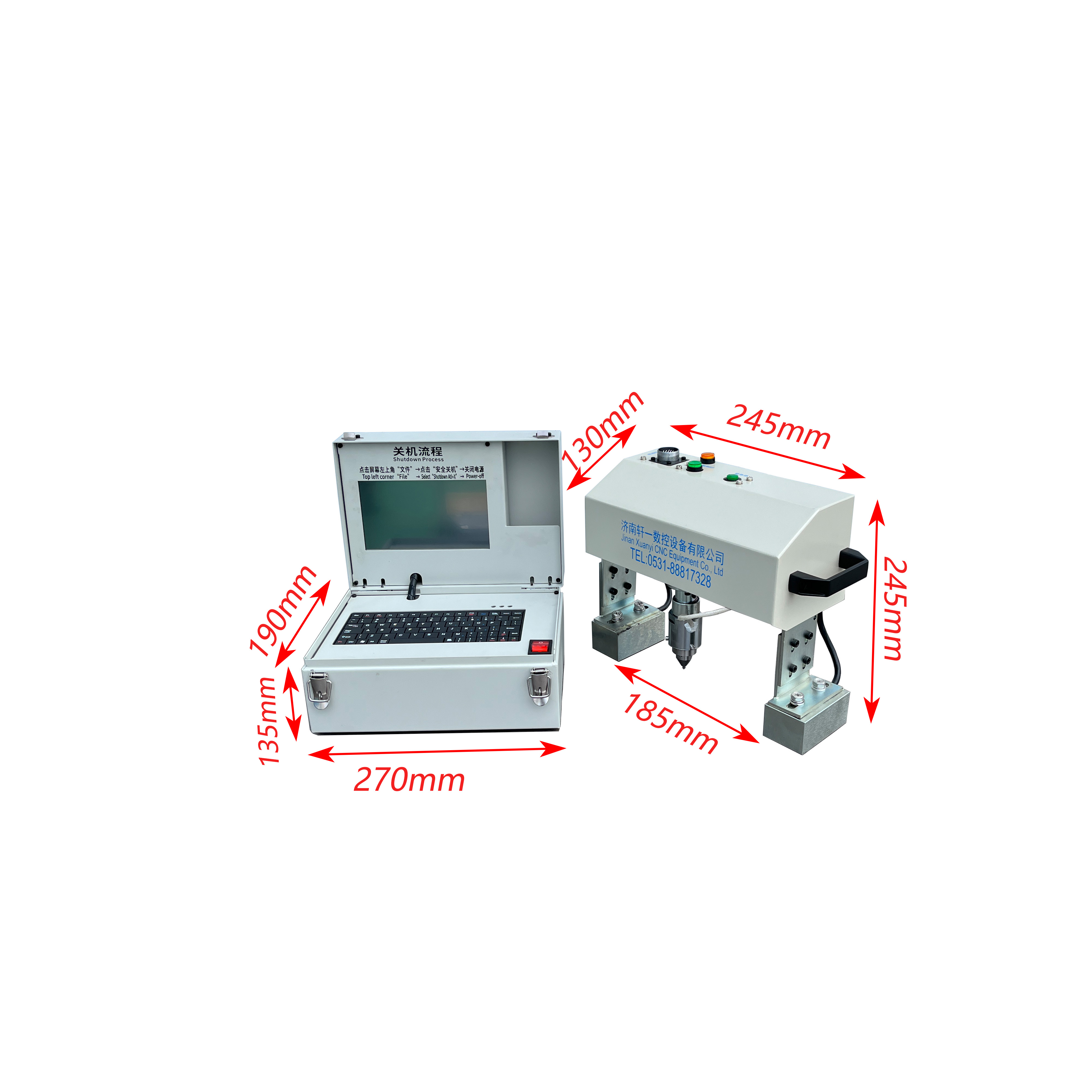

Machine Weight: | Marking head:9.5 kg,Overall weight:15.2kg |
Product Features:
1.Portable dot peen marking machine is portable, so it is suitable for marking on heavy objects with large size and is not easy to move.
2. Portable metal marking machine with 2 separate-body design, convenient operation.
3. Portable dot peen marking machine is controlled by computer, Xanyi Mak’s professional marking software has a wide application and can operate under Window and XP system. It is very easy to use.
4.Portable dot peen marking machine has a very powerful editing function, and can automatically identify various letters and numbers, such as VIN code, engine number, serial number and so on.
5. Supports AutoCAD and CorelDraw logos and graphics designed in DXF ,PLT format.
6. With the function of automatically saving marked content, it can prevent damage caused by shutdown or accidental power failure

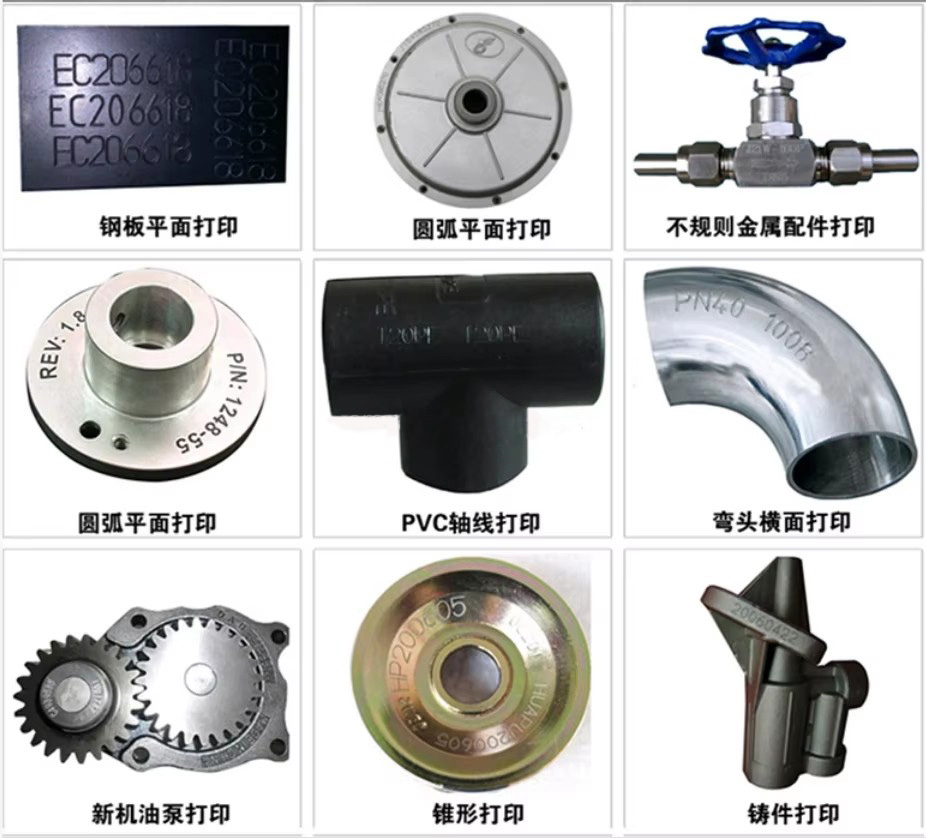

Marking Samles:
