Producut Features:
1.Support AutoCAD, CorelDraw and other DXF format design logos and graphics.
2. The rotary marking machine supports various of fonts such as MG font, CHR in Borland, SHX font in Auto CAD, and TTF in Windows.
3. The marked content will be saved automatically and will not be damaged due to the machine shutdown.
4. The rotary marking machine system supports both 2D and 3D rotating.
5. The pin marking machine can do both flat surface marking and rotary marking.
6.The rotary marking machine system using lifting structure to ensure the realization of multi-function.
7. The rotary marking machine has a powerful editing function, can automatically mark any letters, characters, images and other signs.
Main technical performance:

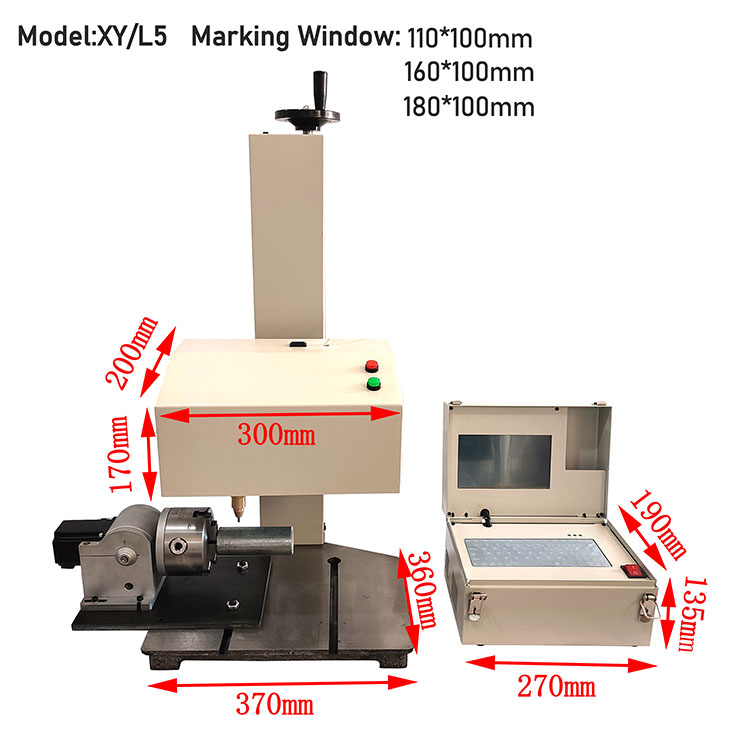

Product Name | Dot Peen Marking Machine |
Model No. | XY/L5 |
Standard Working Area | 110mm×100mm,160mm×100mm,180mm×100mm, |
Marking Depth | 0.01~1.5mm(Depending on the material) |
Marking Speed | ≤50mm/second (for characters height of 3mm or 3-4 numbers /second) |
Printed Content | Letters,numbers,characters,logos,Chinese characters,serial numbers |
Repeated Accuracy | 0.01 mm |
Pin Hardness | HRC 92 |
Power Supply | AC100-240V 50HZ/60HZ |
User provided | Air compressor |

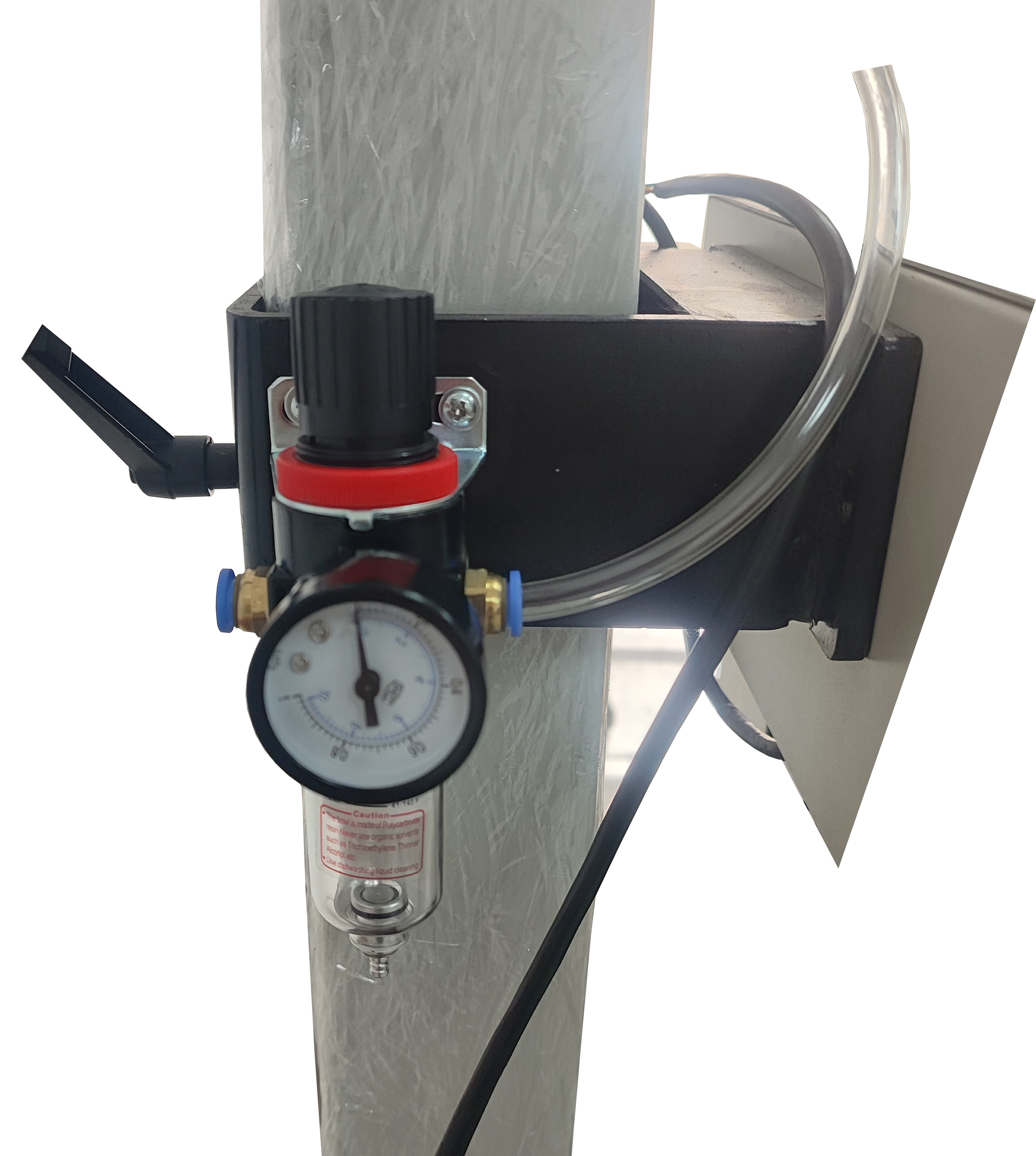

Air pressure | 0.2-0.6Mpa |
Machine Power: | ≤400 W |
Working Environment: | -5~40 C |
Machine Weight: | 57kg |
Applicable Industries
The system of rotary marking machine mainly used in the surface of various metal or hard plastic products such as frame, engine, steel pipe, machine tool, pump body.
Xanyi Mak-Industrial portable dot peen marking machine For Large Size Metal Body is also called a portable dot peen marking machine, a portable metal marking machine, a numerical point needle marking machine, and a portable pneumatic marking machine.(Model:XY/L5) This portable dot peen marking machine can permanently make logos on various metals and some hard plastics. For example, characters and letters can be made on surfaces such as automobiles, motorcycles, machine tools, mechanical parts, metal pipes, and pump bodies.
Marking Samles:
Producut Features:
1.Support AutoCAD, CorelDraw and other DXF format design logos and graphics.
2. The rotary marking machine supports various of fonts such as MG font, CHR in Borland, SHX font in Auto CAD, and TTF in Windows.
3. The marked content will be saved automatically and will not be damaged due to the machine shutdown.
4. The rotary marking machine system supports both 2D and 3D rotating.
5. The pin marking machine can do both flat surface marking and rotary marking.
6.The rotary marking machine system using lifting structure to ensure the realization of multi-function.
7. The rotary marking machine has a powerful editing function, can automatically mark any letters, characters, images and other signs.
Main technical performance:
Product Name | Dot Peen Marking Machine |
Model No. | XY/L5 |
Standard Working Area | 110mm×100mm,160mm×100mm,180mm×100mm, |
Marking Depth | 0.01~1.5mm(Depending on the material) |
Marking Speed | ≤50mm/second (for characters height of 3mm or 3-4 numbers /second) |
Printed Content | Letters,numbers,characters,logos,Chinese characters,serial numbers |
Repeated Accuracy | 0.01 mm |
Pin Hardness | HRC 92 |
Power Supply | AC100-240V 50HZ/60HZ |
User provided | Air compressor |
Air pressure | 0.2-0.6Mpa |
Machine Power: | ≤400 W |
Working Environment: | -5~40 C |
Machine Weight: | 57kg |
Applicable Industries
The system of rotary marking machine mainly used in the surface of various metal or hard plastic products such as frame, engine, steel pipe, machine tool, pump body.
Xanyi Mak-Industrial portable dot peen marking machine For Large Size Metal Body is also called a portable dot peen marking machine, a portable metal marking machine, a numerical point needle marking machine, and a portable pneumatic marking machine.(Model:XY/L5) This portable dot peen marking machine can permanently make logos on various metals and some hard plastics. For example, characters and letters can be made on surfaces such as automobiles, motorcycles, machine tools, mechanical parts, metal pipes, and pump bodies.
Marking Samles:
