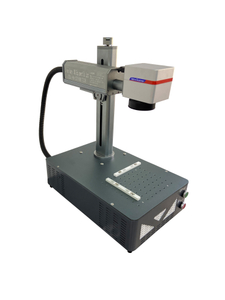

desktop fiber laser marking machine for metal plastic XY/GT

Hot-selling 20W, 30W, 50W fiber laser marking machine portable or desktop.Fiber laser marking machine applicable industries: mobile phone keys, plastic light-transmitting keys, electronic components, integrated circuits (IC), electrical appliances, communication products, bathroom, tools, accessories, knives, glasses and watches, jewelry, auto parts, luggage buckles, cookware, stainless steel products and other industries. Fiber laser marking machine applicable materials: metals (including rare metals), engineering plastics, electroplating materials, coatings, plastics, rubber, epoxy resin, ceramics, plastics, ABS, PVC, PES, steel, copper and other materials

Model:
XY/GT
Brand:
Xanyi Mak

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Details

Product-Details

Product Parameters

ITEM NO	XY/GT
Laser power	10W/20W/30W/50W optional RAYCUS/MAX
L aser wavelength	1064u m
Laser repetition fequency	20-80KHZ
Working area	110X110/200X200/300X300MM option
Marking Deepth	001-1mm(decided by material)
Marking speed	7000-12000 mm/s
Min linewidth	0.017mm
Min character	0.2mm
Repeated accuracy	+001mm
Beam Qu kality	M2<1.2-1.5
Laser output power	1-100% adjust
Positioning Way	Red light
Cooling Mode	air cooling
Voltage need	AC220V -240V 50-60HZ
Gross power	500W/600W/800W
Work environment	Temperature 5- 35C humidity 5-85%
Support file formats	PLT.DXF JPG.AL .PNG.BMP.
Operate system	JCZ EZCAD
Marking Content	logo, character, serial number, bar code, data matix
Package Dlmension	880x870x1270mm
Gross weight	110KG
