Product Overview
Xanyi Mak is world leading dot peen marking machine manufacturers.

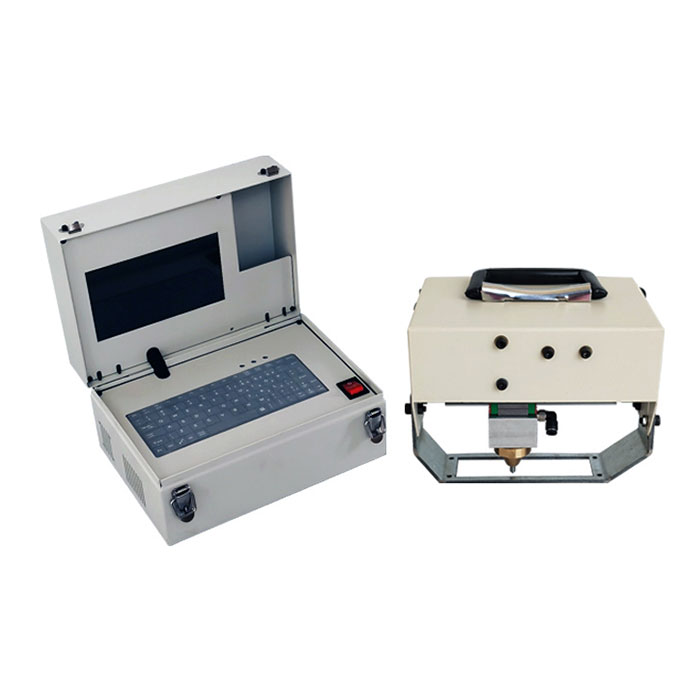

Our Pneumatic dot peen marking machine (Model: XY/F39025-D) is suitable for marking on objects that have large size and is not easy to move, such as large size valves and frame, motorcycle chassis and auto-car engines.
This portable dot peen marking machine is handheld type, which can be used on the surface of large metal body which is hard to move.
Main technical performance
| Model No. | XY/F3-9025D |
Marking Range | 90mm × 25mm |
| Marking Speed | 1-5 characters / second |
Marking Depth | 0.1-2mm, depending on the hardness of the material |
Marking Position | plane of workpiece (two-dimensional, three-dimensional) |
Marking Content | English, numbers, punctuation, Chinese, graphics, two-dimensional code, barcode, etc |
Marking Function | It can automatically print the production serial number (the number that increases regularly); VIN code, production date, etc. |
Material Hardness Requirements | HRC≤65 |
User' s Provide | Air compressor |
Air Pressure | 0.2-0.6Mpa |

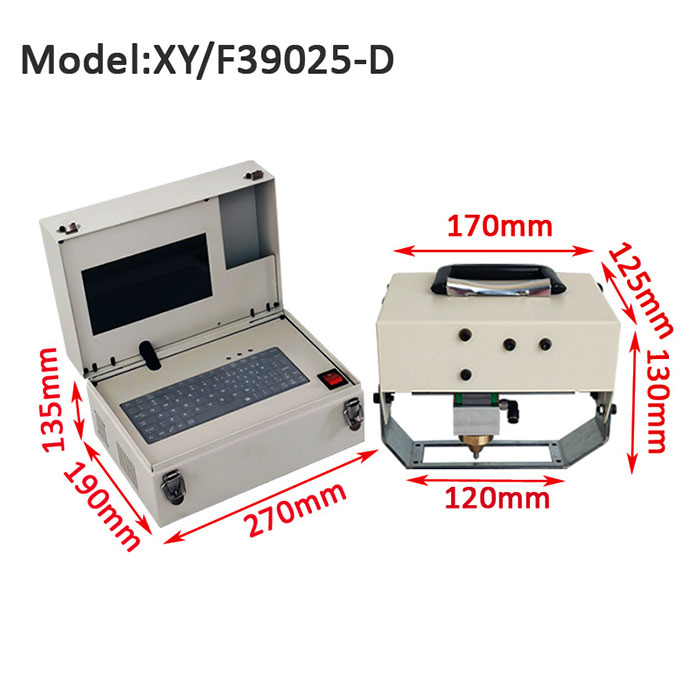

Machine Weight | Marking Head：3.5kg, Overall weight: 10.5kg. |
Equipment Using Conditions
1. Voltage: 110V/220V ± 10%, 50/60HZ;
2. Compressed Air source: 0.2-0.6Mpa, dry and pure;
3. Ambient temperature: 0-40 °C;
4. Overall power: ≤400W; the power of the marking machine is about 150w, plus the controller, the overall power of the controller will not exceed 400W.
Marking Samles
