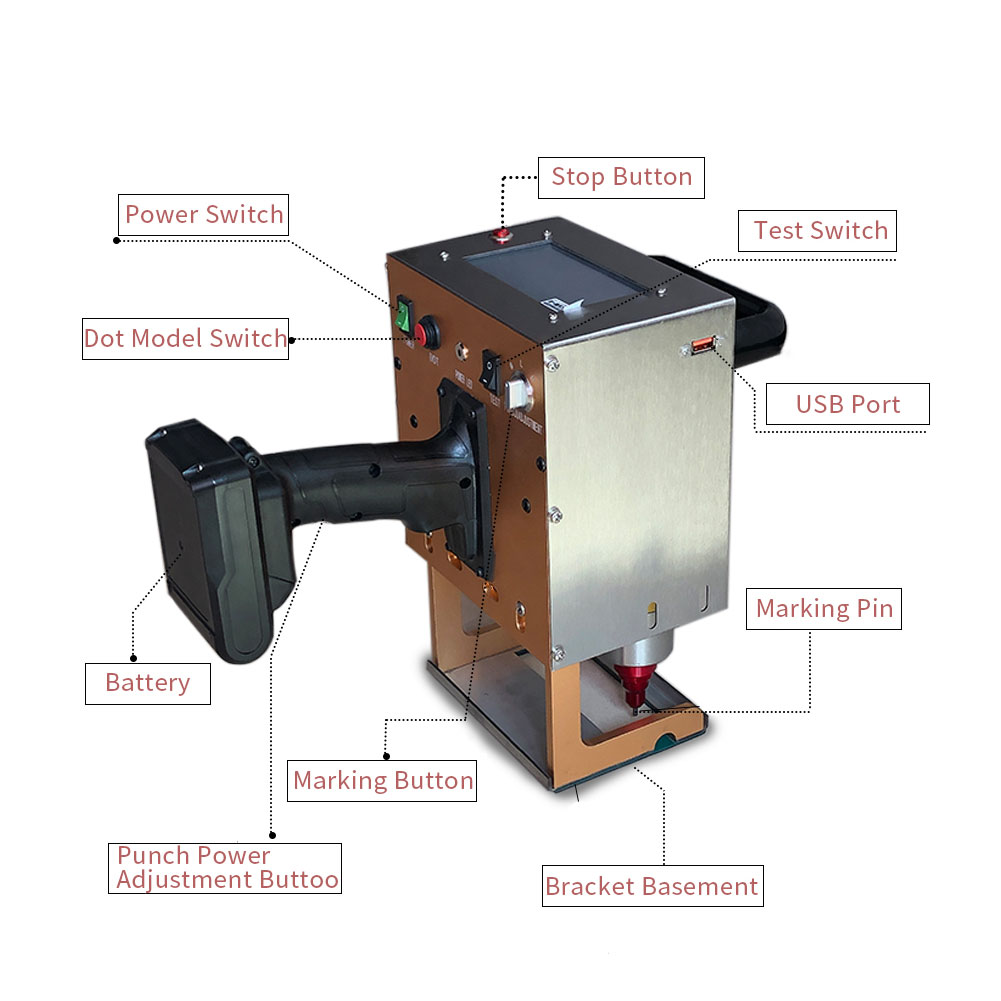

Product features:
1) Man-machine interface: embedded ARM9 industrial control platform, full-screen touch,
2) Display system: 4.3-inch true color touch screen (industrial grade), software embedded control system.
3) Drive Control Card: ARM+STM 32 Dual Bit Processor
4) Stepper motor driver: Fully digital drive, no noise operation, extremely smooth marking effect, automatic semi-flow.
Stepper motor: Sanyo Denki JAPAN, or high quality domestic motor (features: low noise, large torque, low heat)
5) Transmission mechanism / Guide Rail: Taiwan Hiwin (characteristics: high precision, low operating noise, closed type)
6) Print pin: The whole piece made-in- Japan, is the high quality composite material.
7) Suitable for mobile coding, the integrated design is more convenient.
8) Software versions in English and Chinese version.
Product Parameter
Product Name | Handheld Dot Peen Marking Machine |
Model No. | XY/SD-3-9030 |
Standard Working Area | 90mm×30mm |
Marking Depth | 0.05~1.25mm(Depending on the material) |
Marking Speed | ≤50mm/second (for characters height of 3mm or 3-4 numbers /second) |
Printed Content | Letters,numbers,characters,logos,Chinese characters,serial numbers |
Repeated Accuracy | 0.01 mm |
Pin Hardness | HRC 92 |
Power Supply | Li-battary |
User provided | NON |
Machine Power | ≤250 W |
Working Environment | -5~40 C |
Machine Weight | 5.8KG |
Our machine shines in metal marking, effortlessly handling stainless steel, aluminum, carbon steel, and even precious metals like gold and silver. Step into a world of unmatched efficiency and robustness with Xanyi Mak.

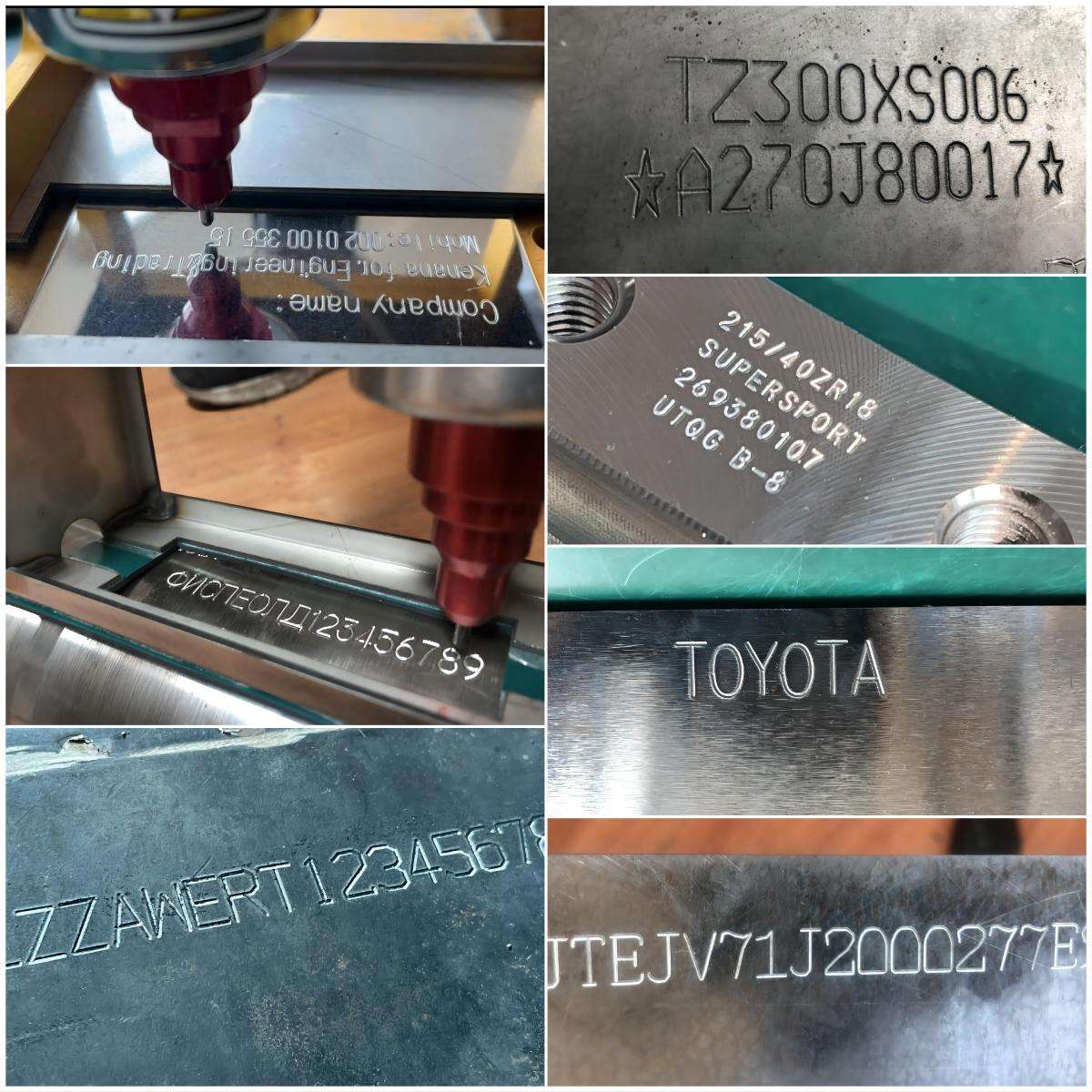

Marking Effect
