Product Overview
Xanyi Mak is world leading dot peen marking machine manufacturers.
Our Pneumatic dot peen marking machine (Model: XY/F19030) is suitable for marking on objects that have large size and is not easy to move, such as large size valves and frame, motorcycle chassis and auto-car engines.

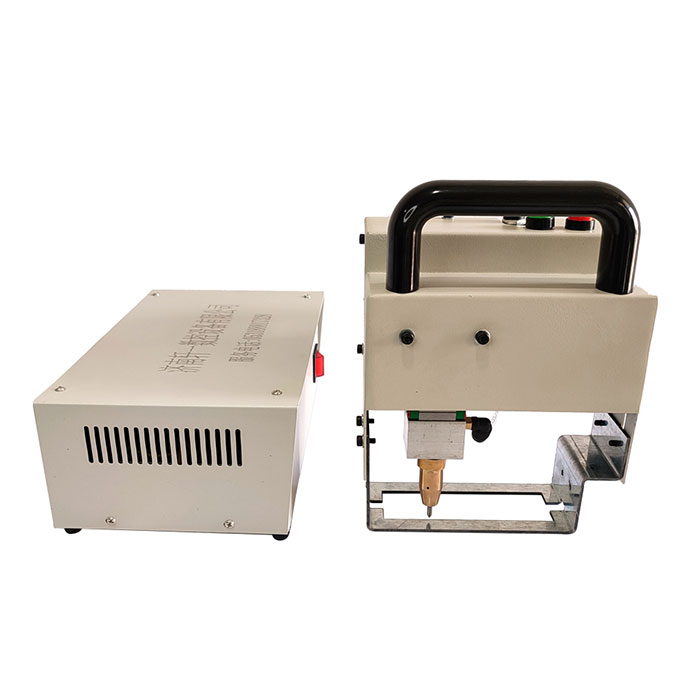

This portable dot peen marking machine is handheld type, which can be used on the surface of large metal body which is hard to move.
Main technical performance
Product Name | Dot Peen Marking Machine |
Model No. | XY/F1-9030 |

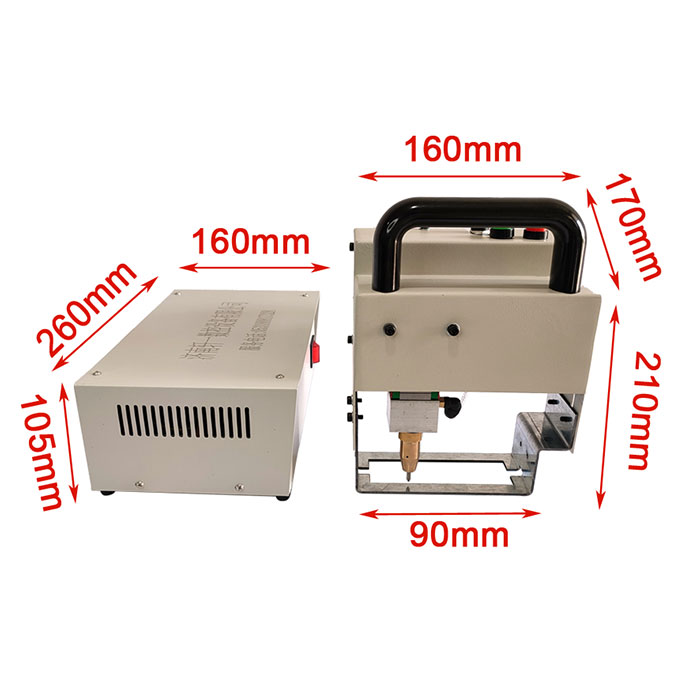

Standard Working Area | 90mm×30mm |
Marking Depth | 0.01~1.5mm(Depending on the material) |
Marking Speed | ≤50mm/second (for characters height of 3mm or 3-4 numbers /second) |
Printed Content | Letters,numbers,characters,logos,Chinese characters,serial numbers |
Repeated Accuracy | 0.01 mm |
Pin Hardness | HRC 92 |
Power Supply | AC100-240V 50HZ/60HZ |

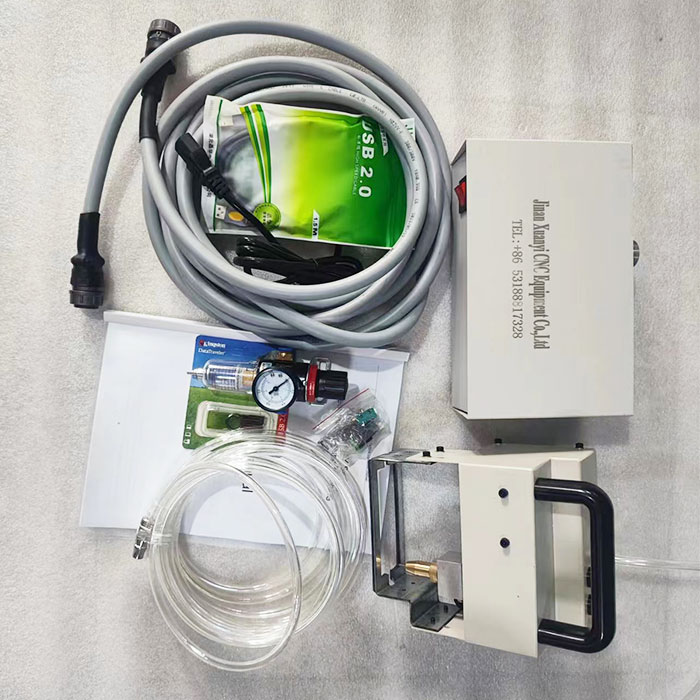

User provided | PC&air compressor |
Air pressure | 0.2-0.6Mpa |
Machine Power: | ≤250 W |
Working Environment: | -5~40 C |
Weight: | Marking head:3kg,Overall weight:8.8kg |
Main Features
1. The portable dot peen marking machine is ideal for marking purpose in large-scaled or heavy workpiece
2. user-friendly, easy operation
3. Available to automatic marking the Chinese and English character, serial number, VIN code, bitmap font, two-dimension code, etc.
4. Needle head is made of hard alloy material and suited to the products with hardness level of HRC62
5. Anti-interference, strong ability to radiation resistance, well adaptability in harsh work environment
6. Extremely low failure rate, less maintenance
7. Low power consumption, low cost, low price

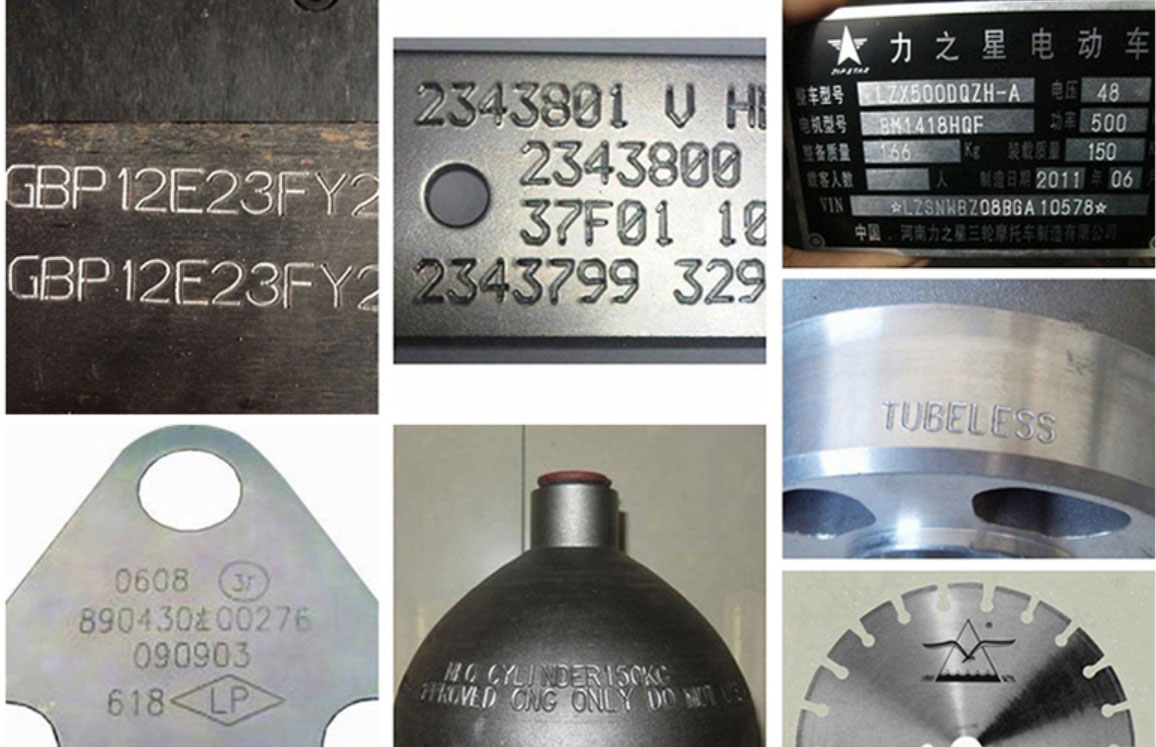

Marking Samles
