Product Overview
Xanyi Mak is world leading dot peen marking machine manufacturers.
Our Pneumatic dot peen marking machine (Model: XY/F19025-D) is suitable for marking on objects that have large size and is not easy to move, such as large size valves and frame, motorcycle chassis and auto-car engines.

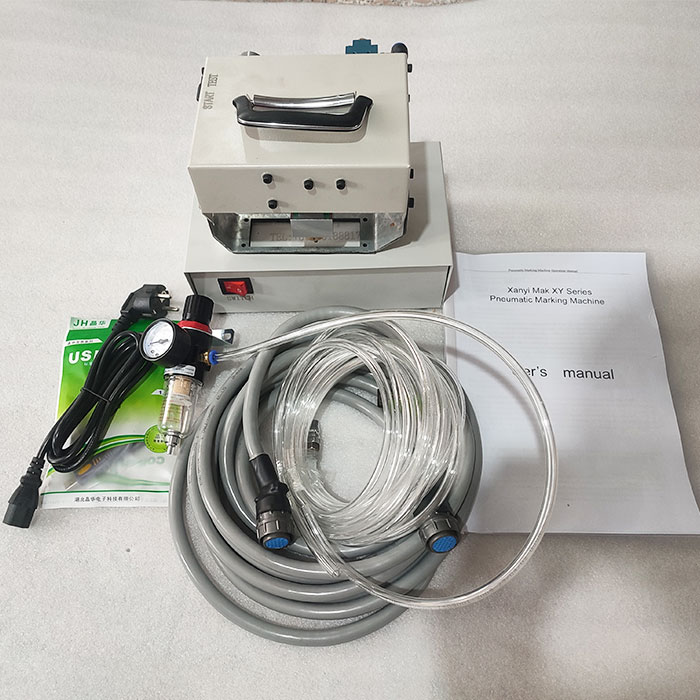

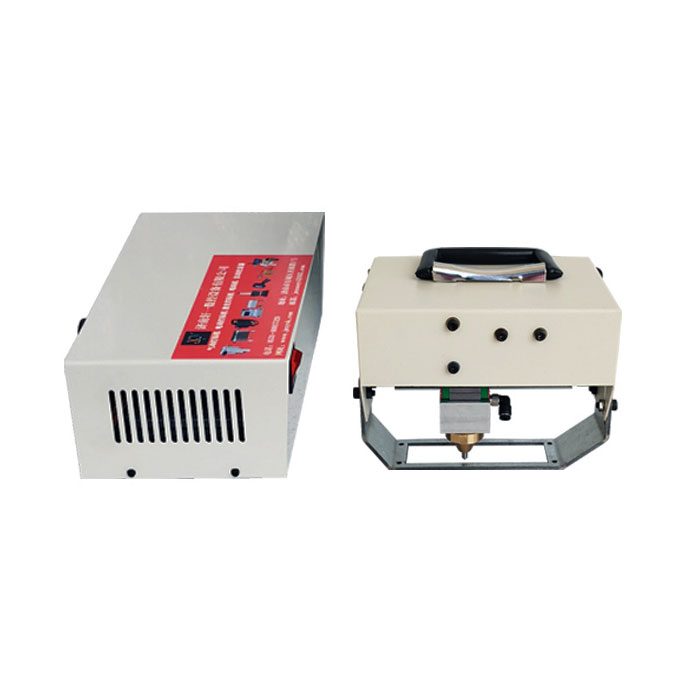

This portable dot peen marking machine is handheld type, which can be used on the surface of large metal body which is hard to move.
Main technical performance
1. Model No.: XY/F1-9025D
2. Marking range: 90mm × 25mm
3. Marking speed: 1-5 characters / second,
4. Marking depth: 0.1-2mm, depending on the hardness of the material;
5. Marking position: plane of workpiece (two-dimensional, three-dimensional)
6. Marking content: English, numbers, punctuation, Chinese, graphics, two-dimensional code, barcode, etc .;
7. Marking function: It can automatically print the production serial number (the number that increases regularly); VIN code, production date, etc.
8. Material hardness requirements: HRC≤65:
9. User' s provide: PC& Air compressor
10. Air pressure: 0.2-0.6Mpa
11. Machine weight: Marking Head：3.5kg, Overall weight: 8.3kg.
Equipment using conditions:
1. Voltage: 110V/220V ± 10%, 50/60HZ;
2. Compressed Air source: 0.2-0.6Mpa, dry and pure;
3. Ambient temperature: 0-40 °C;
4. Overall power: ≤400W; the power of the marking machine is about 150w, plus the controller, the overall power of the controller will not exceed 400W.

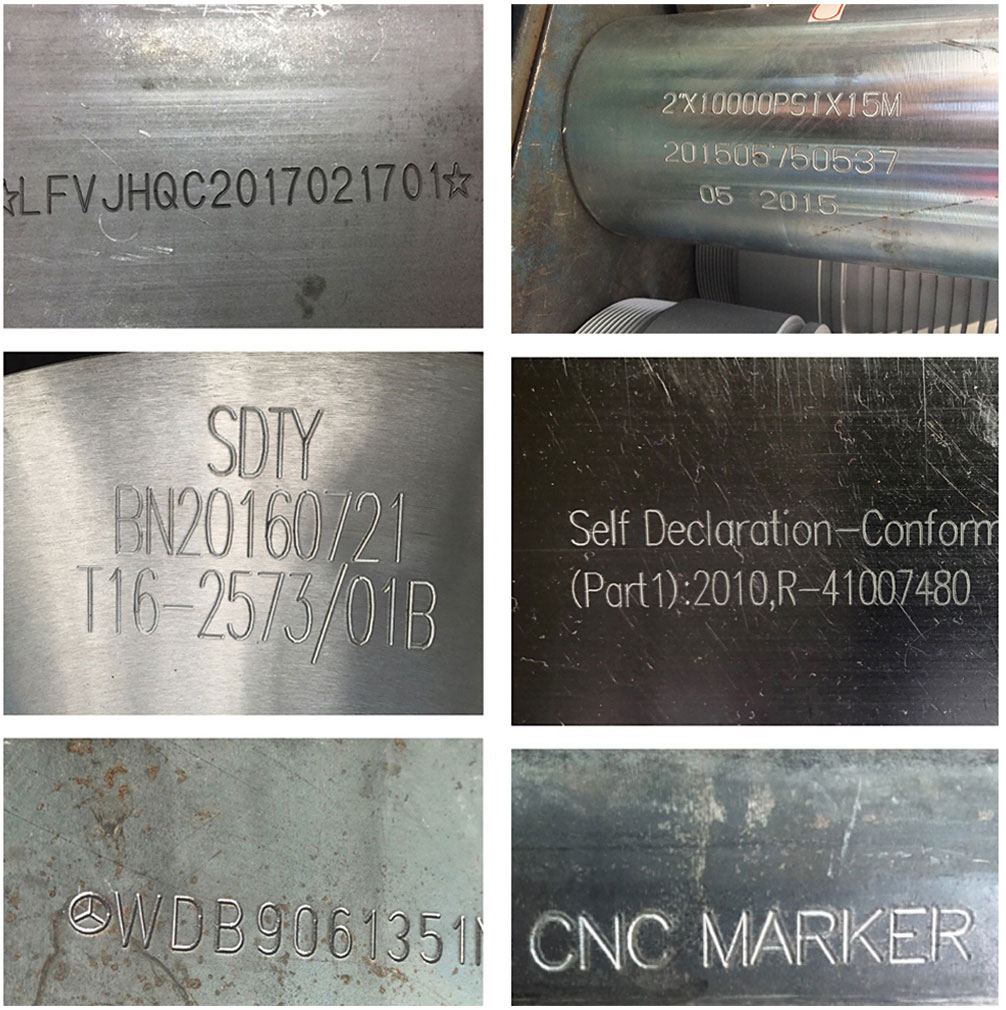

Marking Samles
