Product Overview
Xanyi Mak is world leading dot peen marking machine manufacturers.
Our Pneumatic dot peen marking machine (Model: XY/F3-9030) is suitable for marking on objects that have large size and is not easy to move, such as large size valves and frame, motorcycle chassis and auto-car engines.

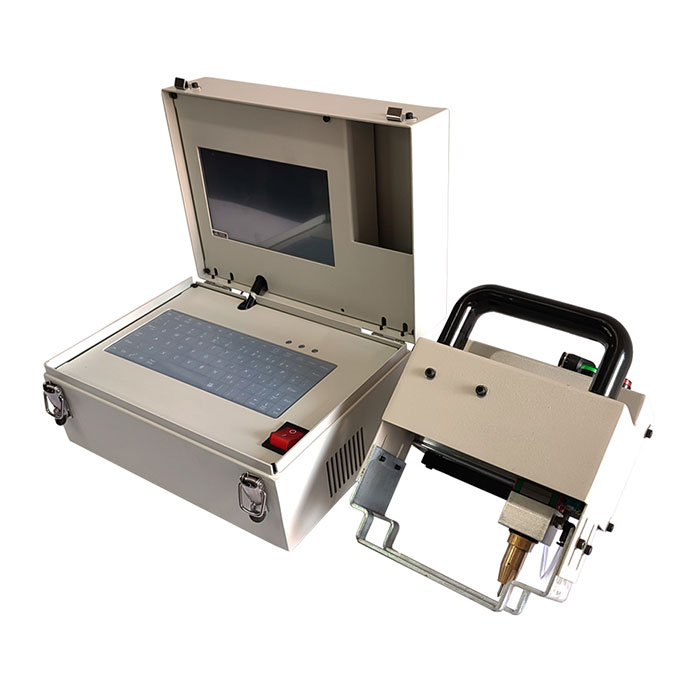

This portable dot peen marking machine is handheld type, which can be used on the surface of large metal body which is hard to move.
Main technical performance
Product Name | Dot Peen Marking Machine |

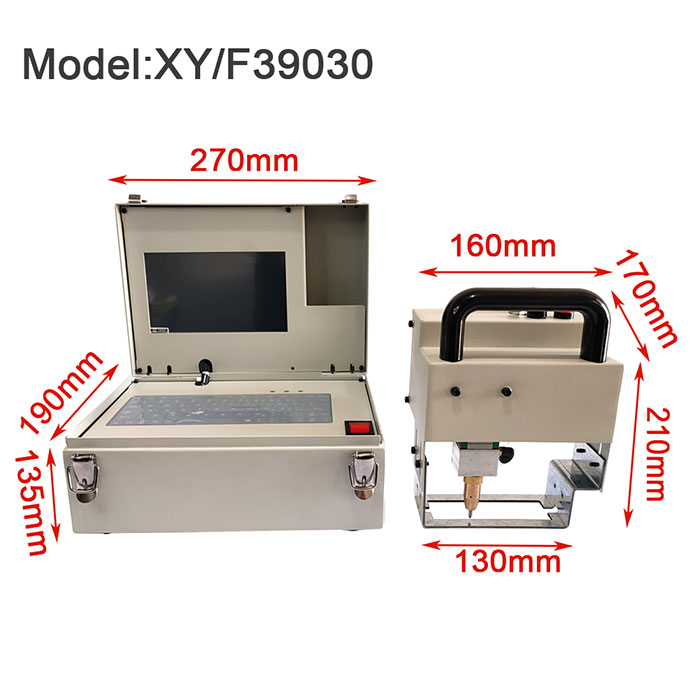

Model No. | XY/F3-9030 |
Standard Working Area | 90mm×30mm |
Marking Depth | 0.01~1.5mm(Depending on the material) |
Marking Speed | ≤50mm/second (for characters height of 3mm or 3-4 numbers /second) |
Printed Content | Letters,numbers,characters,logos,Chinese characters,serial numbers |
Repeated Accuracy | 0.01 mm |
Pin Hardness | HRC 92 |
Power Supply | AC100-240V 50HZ/60HZ |
User provided | air compressor |
Air pressure | 0.2-0.6Mpa |
Machine Power: | ≤250 W |
Working Environment: | -5~40 C |
Weight: | Marking head:3kg,Overall weight:11kg |
Application
Due to the rotary marking function, this portable dot peen marking machine is widely used for marking characters, letters, serials numbers and VIN codes on bodywork of motorcycles, connecting rods, engines, steel pipe, cylinder and cylinder various stepper motors and mechanical parts, machine tools, metal pipes, pump bodies, valves, fastening pieces and various hard plastic products. That is, steel, stainless steel, iron, copper, aluminum, alloys and hard non-metal labels & accessories.

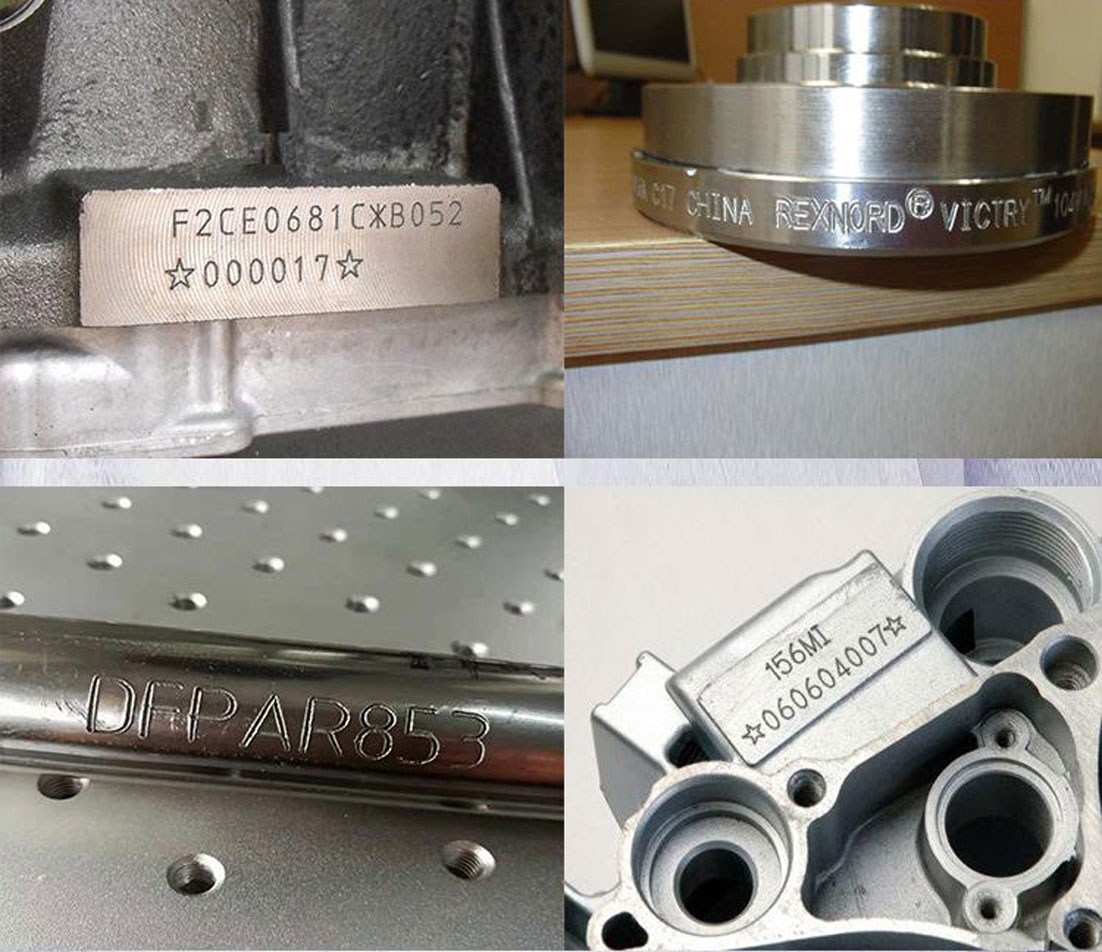

Marking Samles
