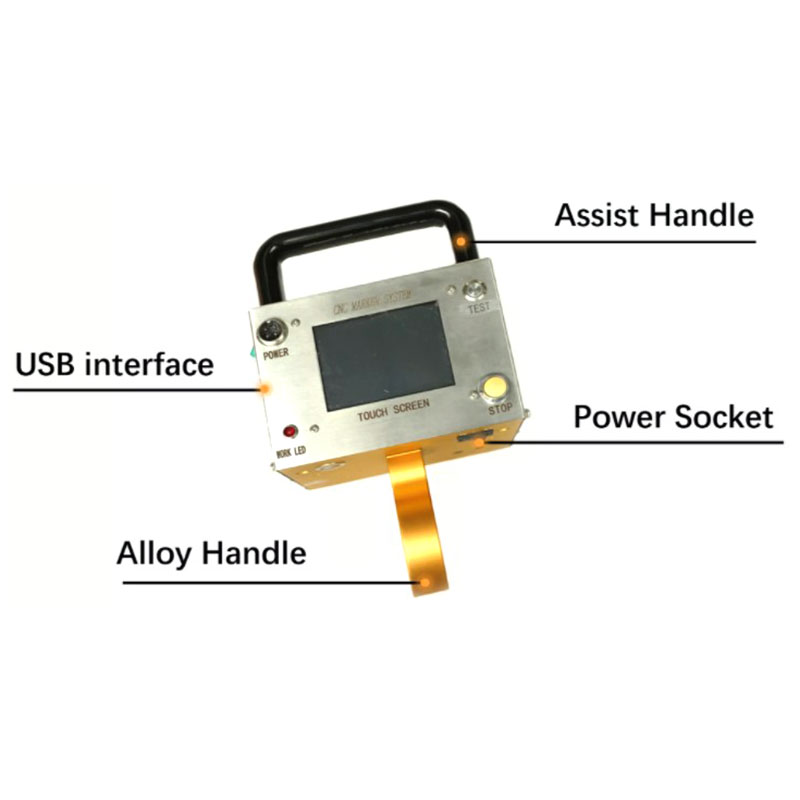

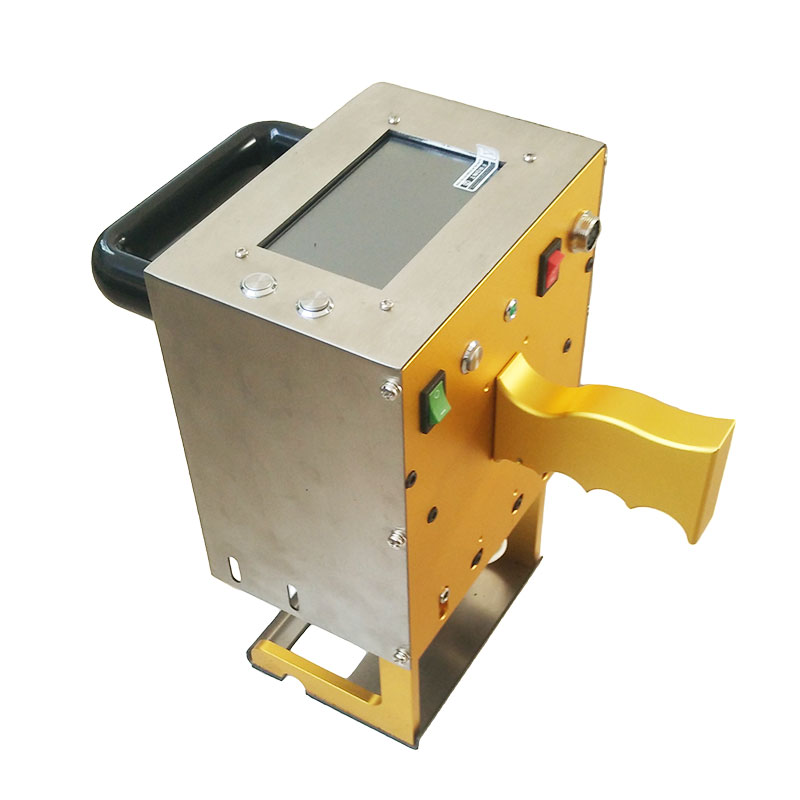

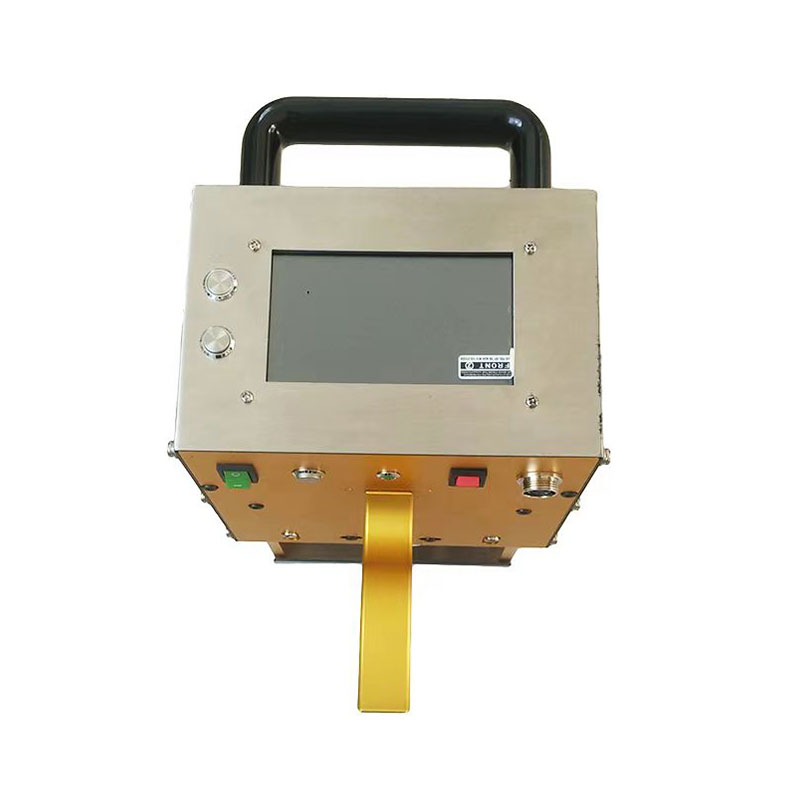

Product Details
Electric handheld dot peen marking machine is mainly used for cars and motorcycle parts vin number marking, mechanical metal parts engraving, and other industrial medium and big size parts engraving and marking. It is very helpful for your product identification traceability.
The whole machine adopts imported industrial components, ensure the marking accuracy and long service life.
Work Principle
The computer (this machine is a micro touch screen computer) controls the marking needle to move in the X, Y two-dimensional plane according to the trajectory of the graphic characters edited by the computer. At the same time, the marking needle performs high-frequency impact motion on the workpiece, thereby forming a corresponding on the workpiece. Graphic or characters.
Technical Parameters
Product Name | Handheld Dot Peen Marking Machine |
Model No. | XY/SD-2-9030 |
Standard Working Area | 90mm×30mm |
Marking Depth | 0.01~1.5mm(Depending on the material) |
Marking Speed | ≤50mm/second (for characters height of 3mm or 3-4 numbers /second) |
Printed Content | Letters,numbers,characters,logos,Chinese characters,serial numbers |
Repeated Accuracy | 0.01 mm |
Pin Hardness | HRC 92 |
Power Supply | AC100-240V 50HZ/60HZ |
Machine Power: | ≤250 W |
Working Environment: | -5~40 C |
Machine Weight: | 5.5KG |

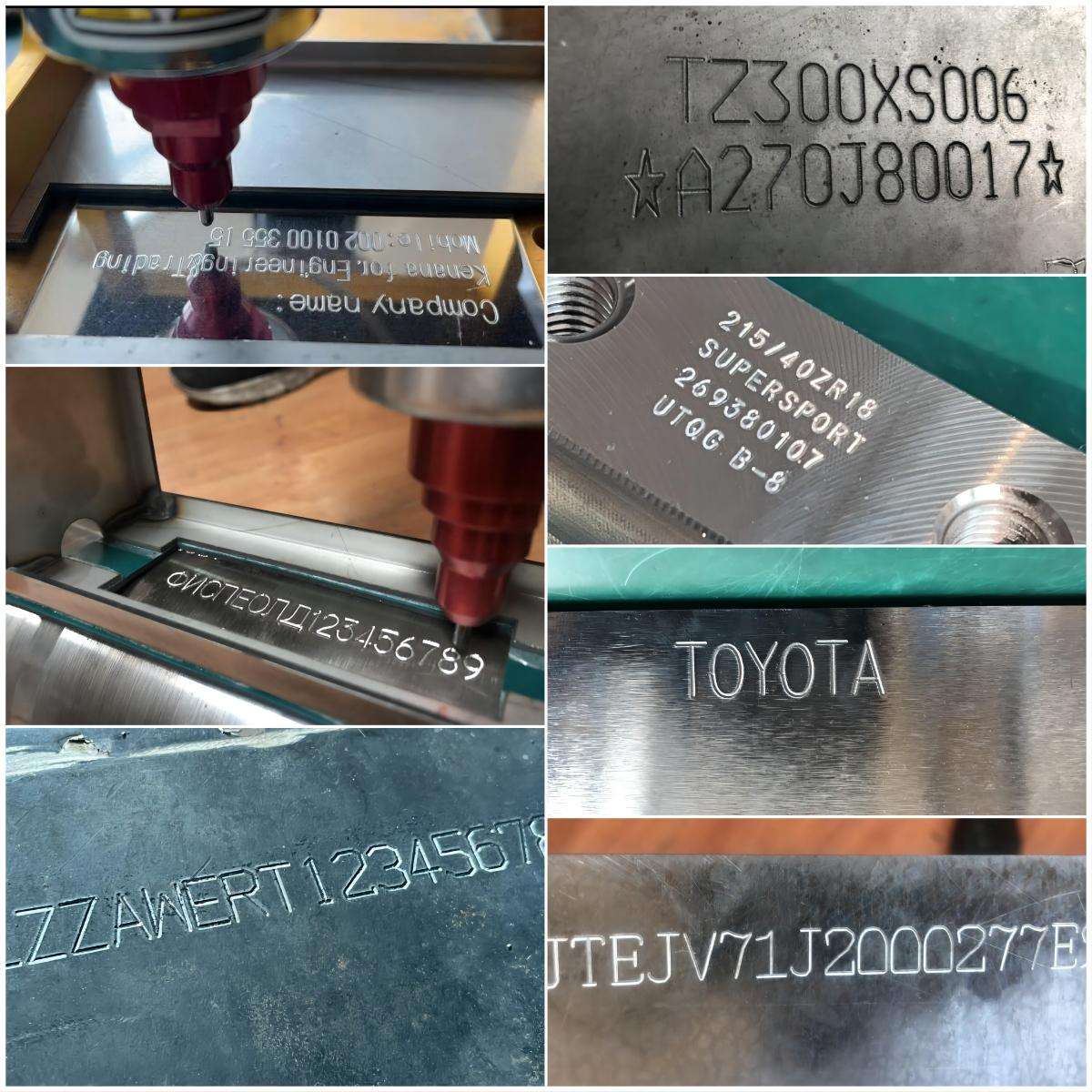

Marking Effect
